Linked Dipole Ideas

A while back I was looking at some ideas for portable antennas for SOTA (Summits on the Air) and camping to use with my KX3.

I have been pretty happy with my random wire antenna. At some point I will eventually start experimenting with End Fed Half Wavelength Antennas (EFHWA) as I have a couple of tuners and kits sitting around the shack. I also have a nice selection of mono band wire dipole antennas that I use for Field Day. (It is hard to be a dipole antenna.)

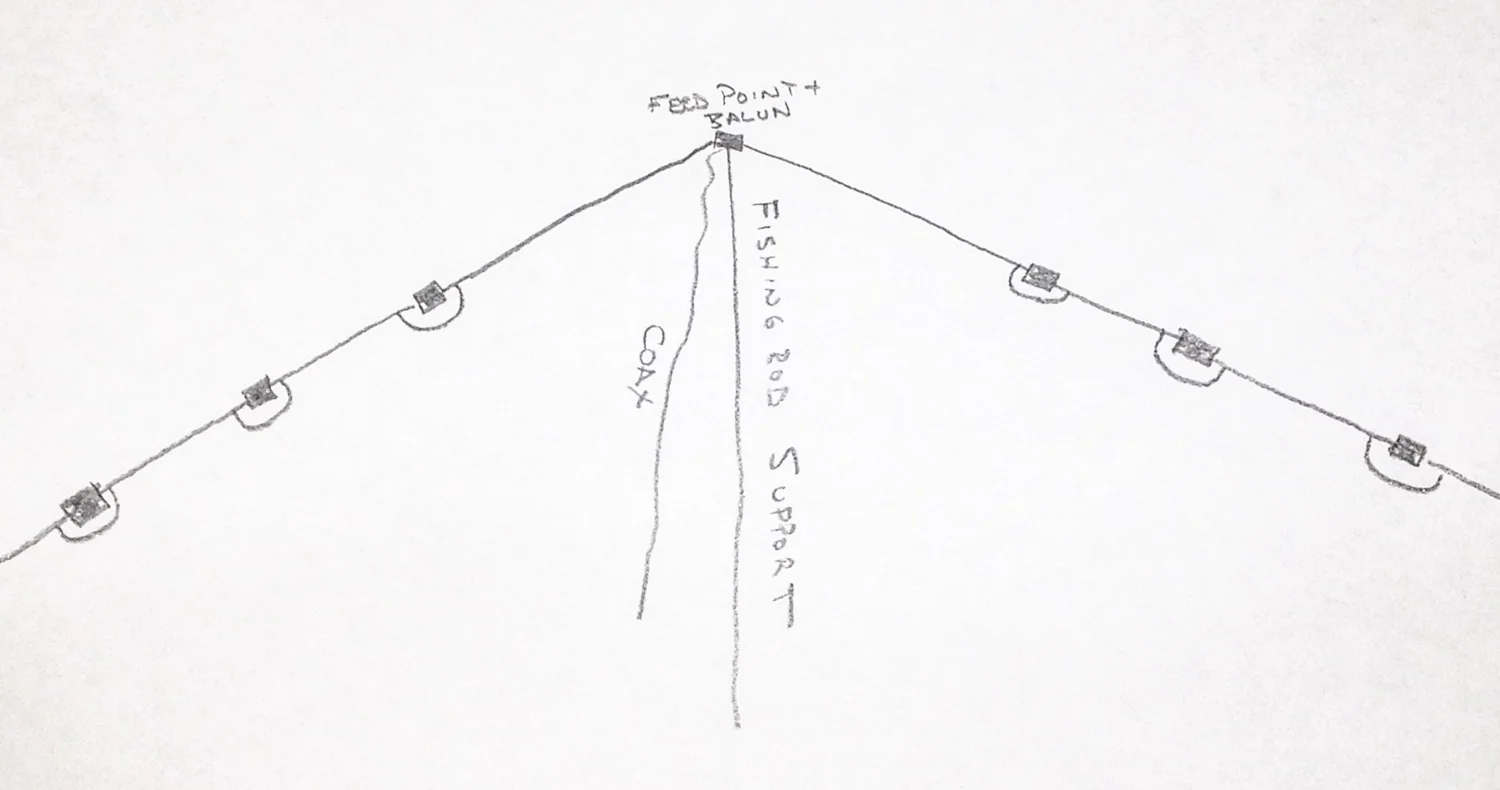

Another variation of the classic dipole might be something called a linked dipole. It is a dipole antenna with sections that can be linked together or removed to enable/disable bands. It is multi band antenna functionality wise but a single band at a time.

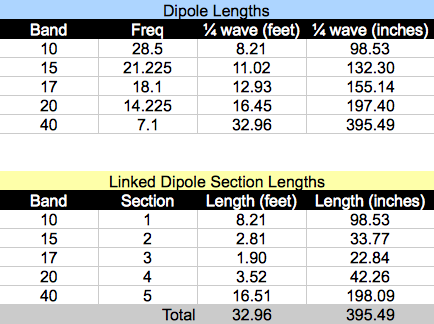

I was wondering what the lengths of each section might so I built a quick spreadsheet to run the math for the bands of my primary interest.

Screen Shot 2013-01-18 at 9.23.27 PM.png

This is not a definitive design article for this project concept. It is simply some thoughts based upon some discussion within a local radio club for projects that we might build as a group event. I stumbled across some notes and thought that this might be an option.

Related links:

73 de NG0R
